Explanation
Janz et al. 2014 - A census of stucture in early-type dwarfs
VCC0816
One-component
McDonald et al. (2011) profile
Model
Residual ± 3 σ
Residual ± 0.3mag

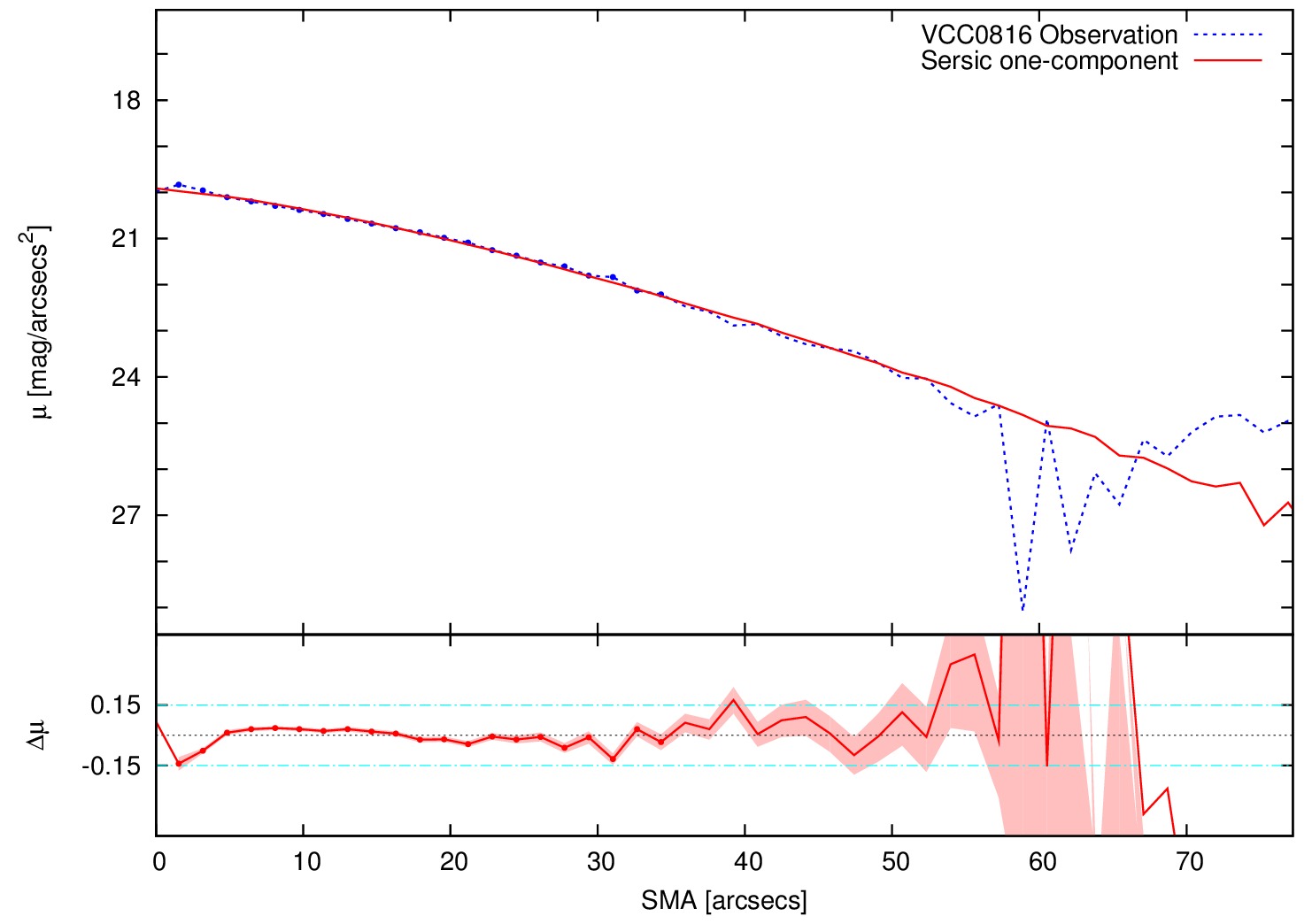

Azimuthally averaged profile

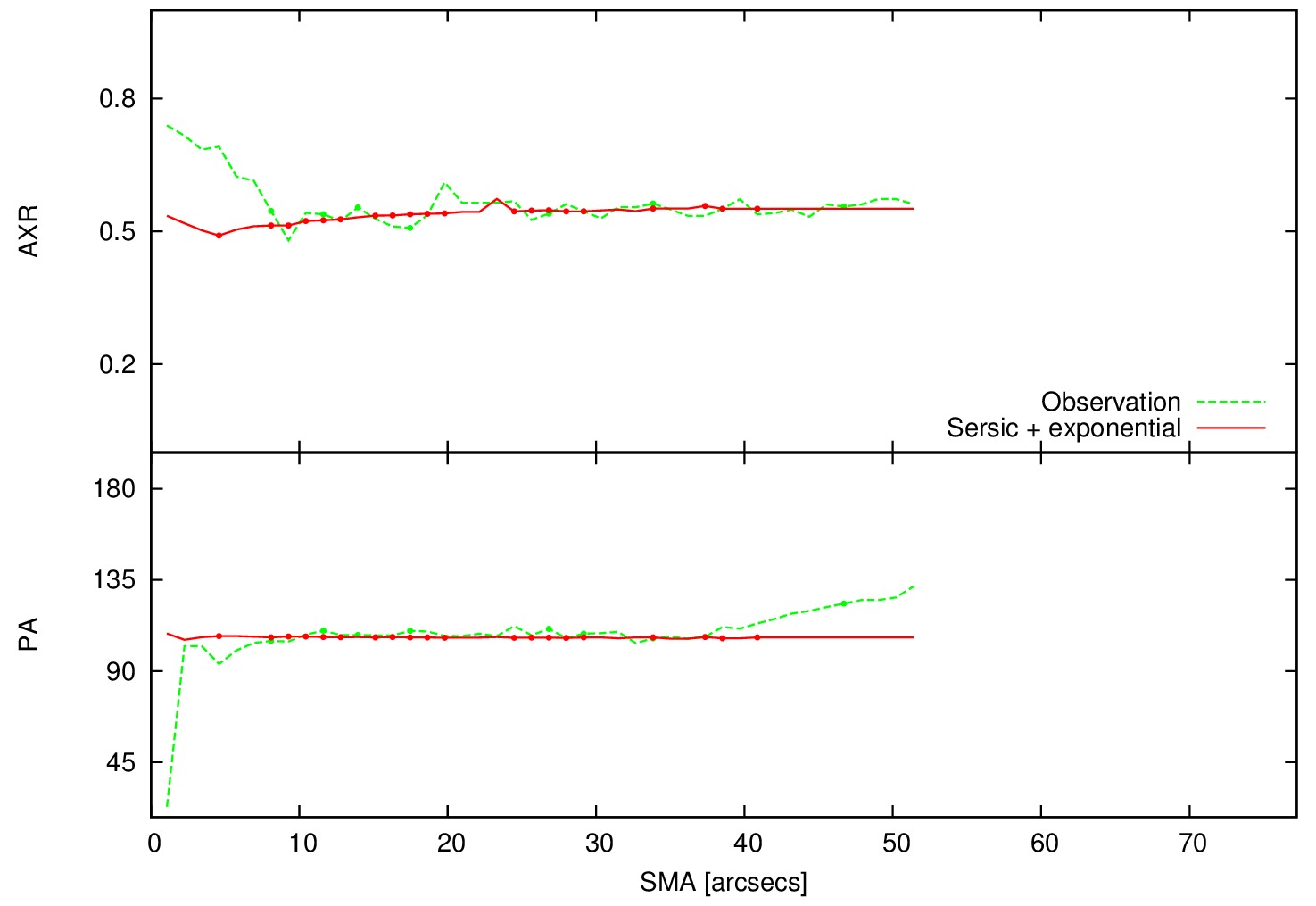

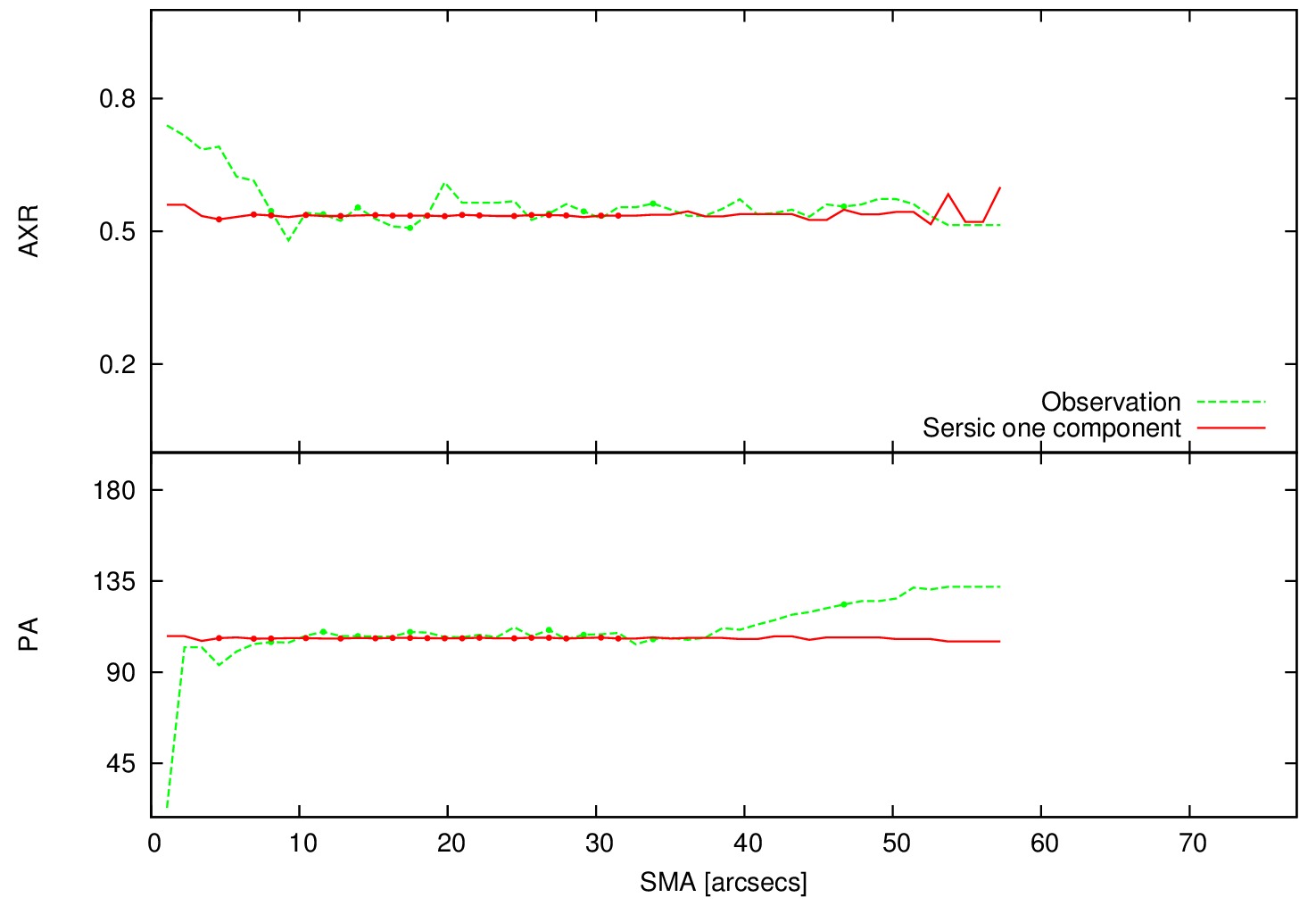

Profiles of isophotal parameters

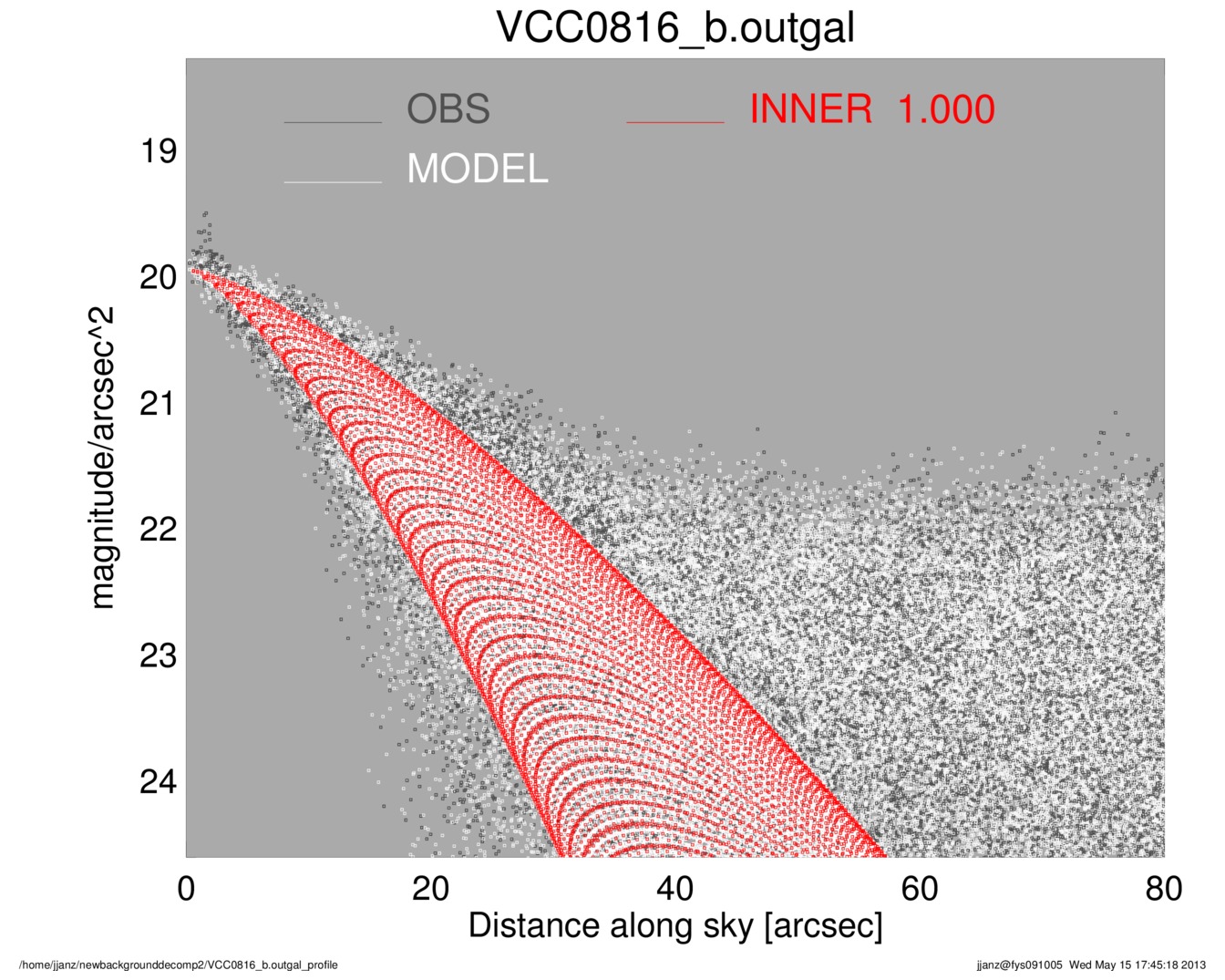

Two-dimensional profile
Simple

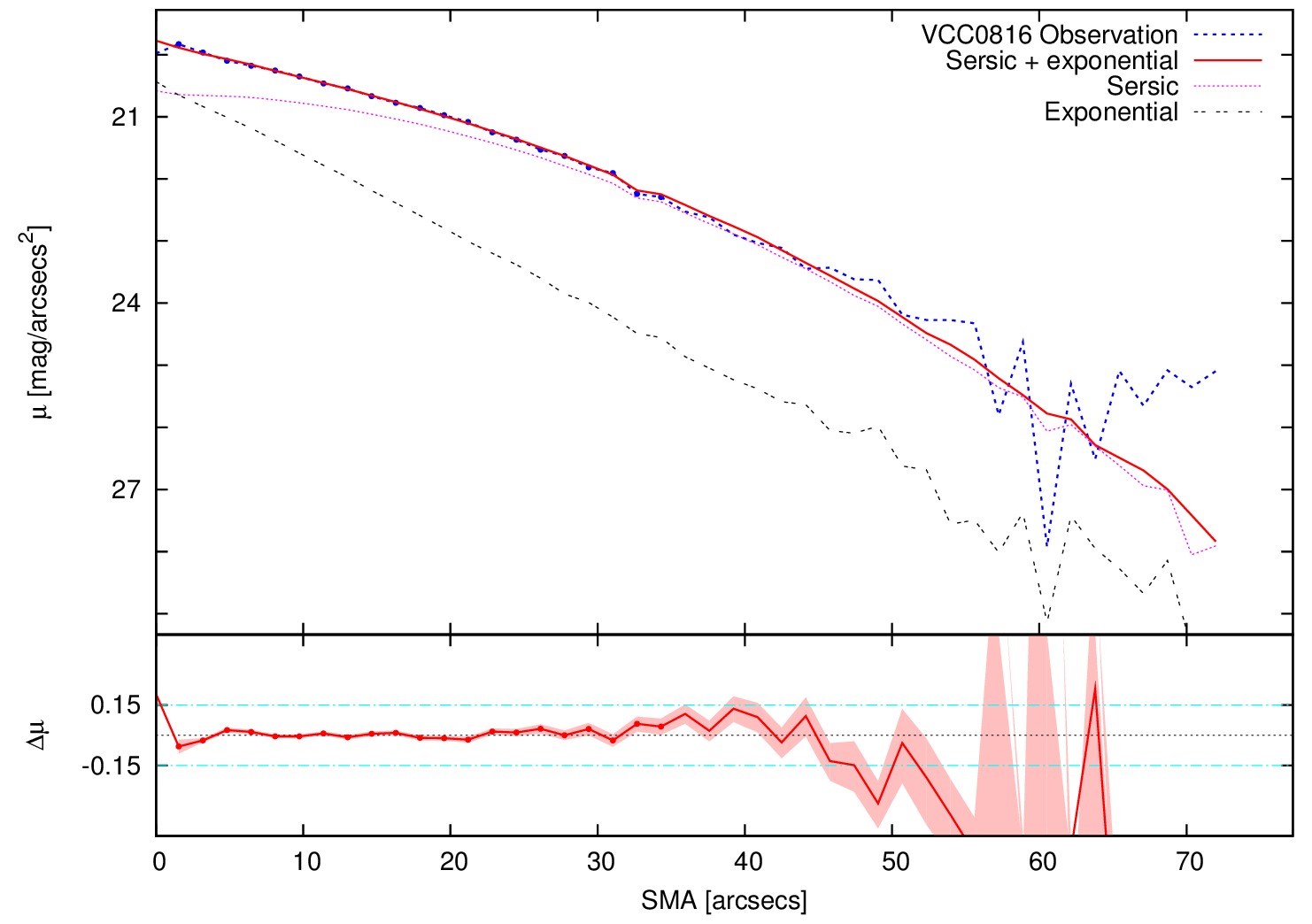

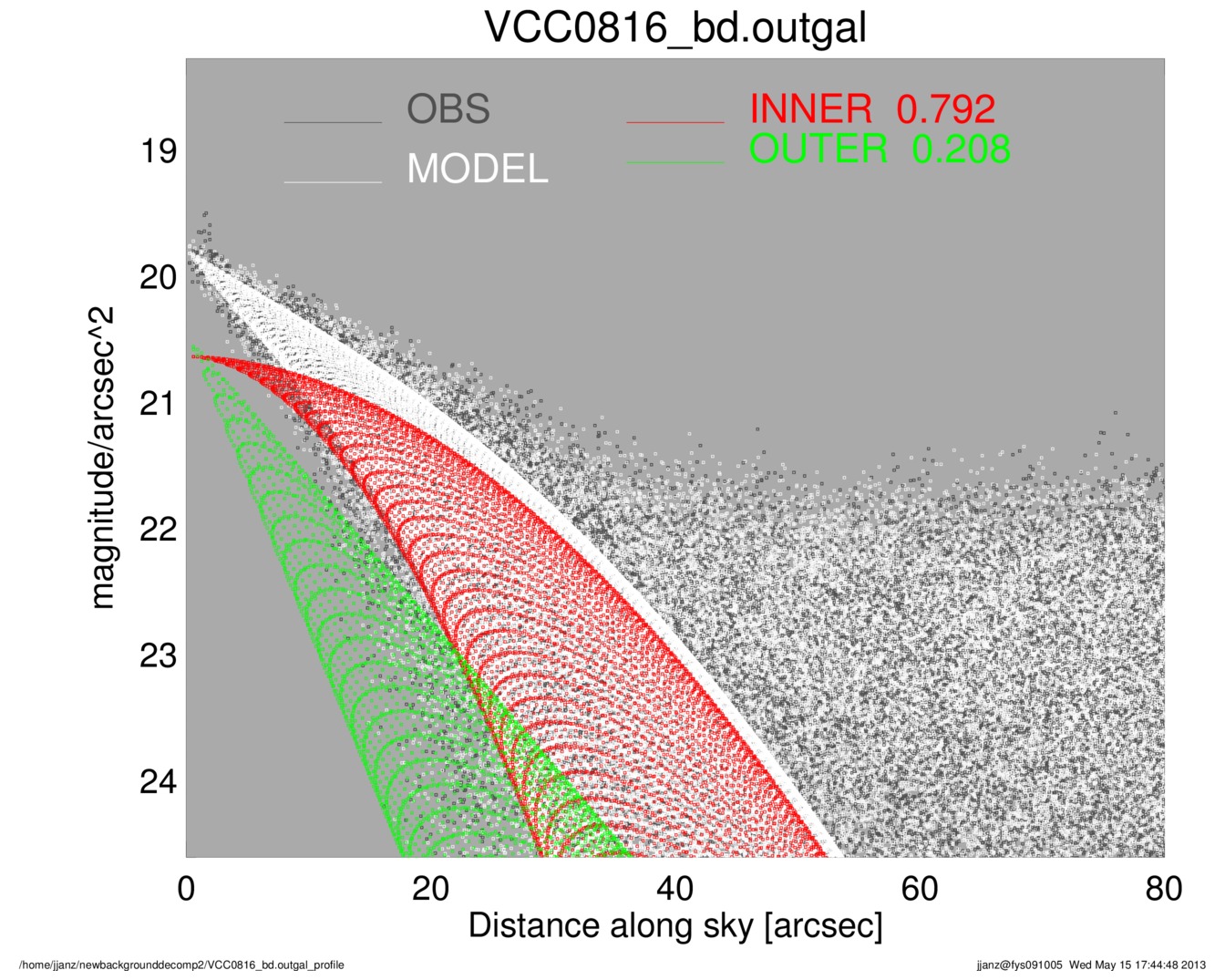

Sersic + Exponential
Final
VCC0816 and VCC0817 have large global background uncertainties that are omitted from the one-dimensional profile plots.
